Cartridge & Zero Profile Valves

Deltrol’s Cartridge Valves provide hydraulic functional control for flows typically up to 10 gpm.

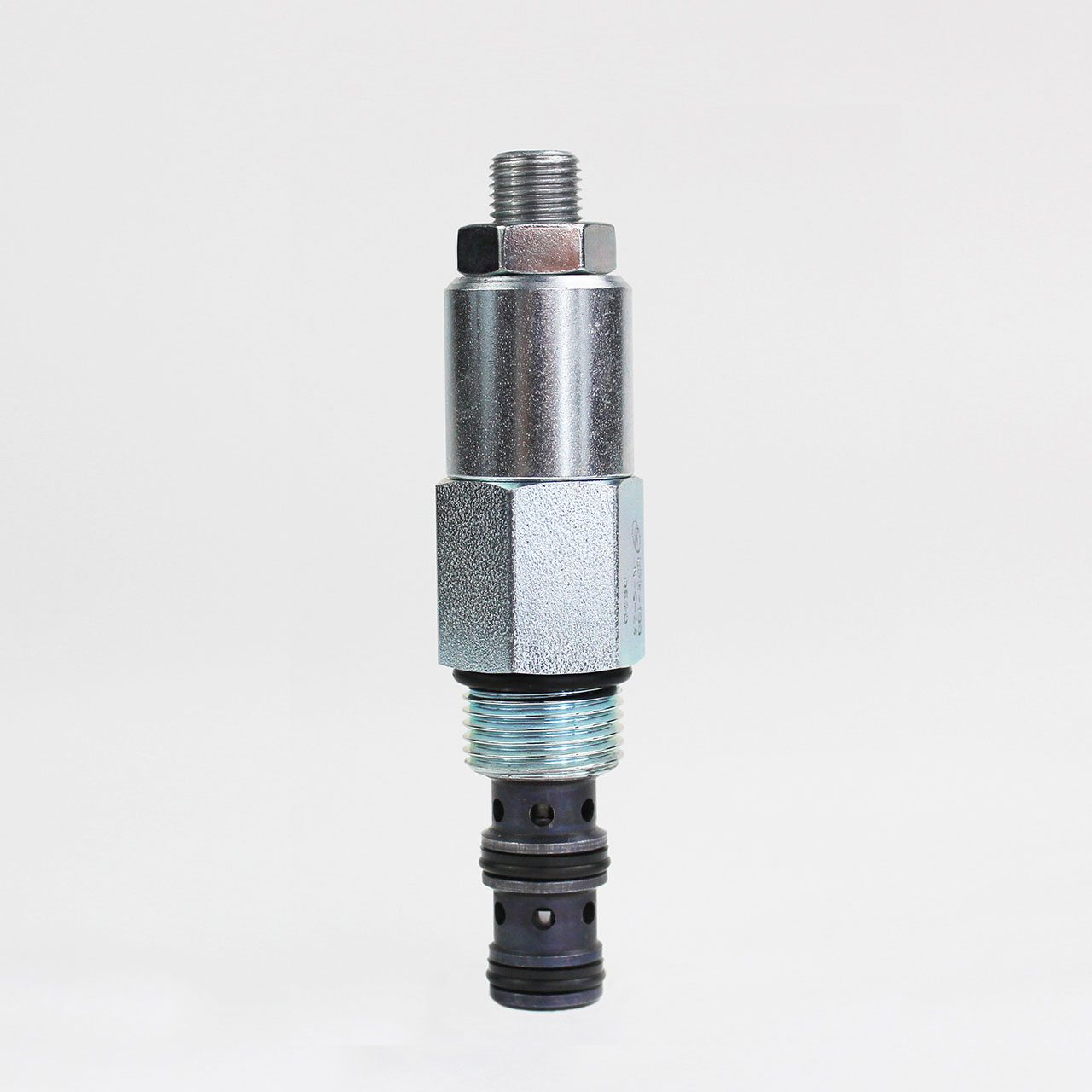

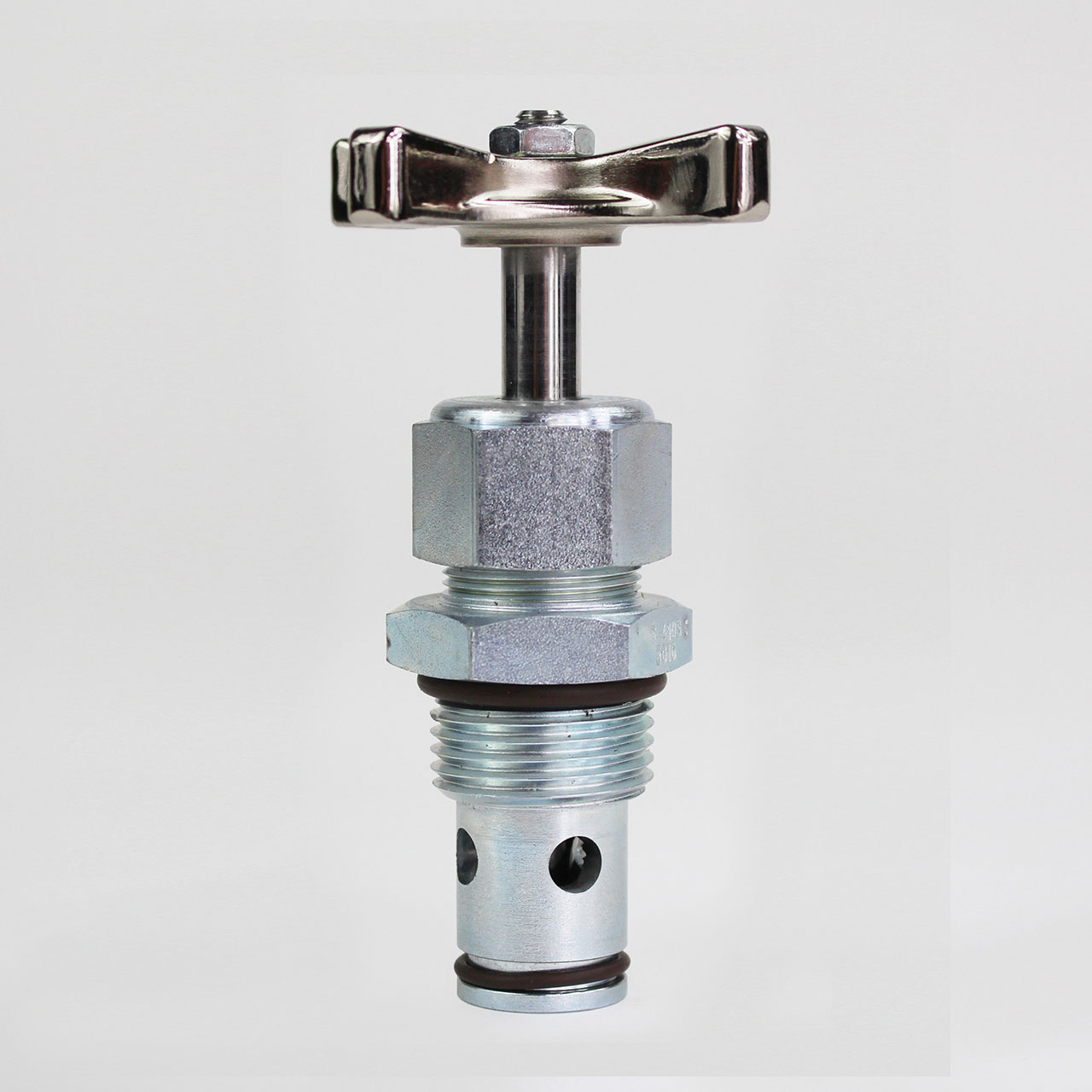

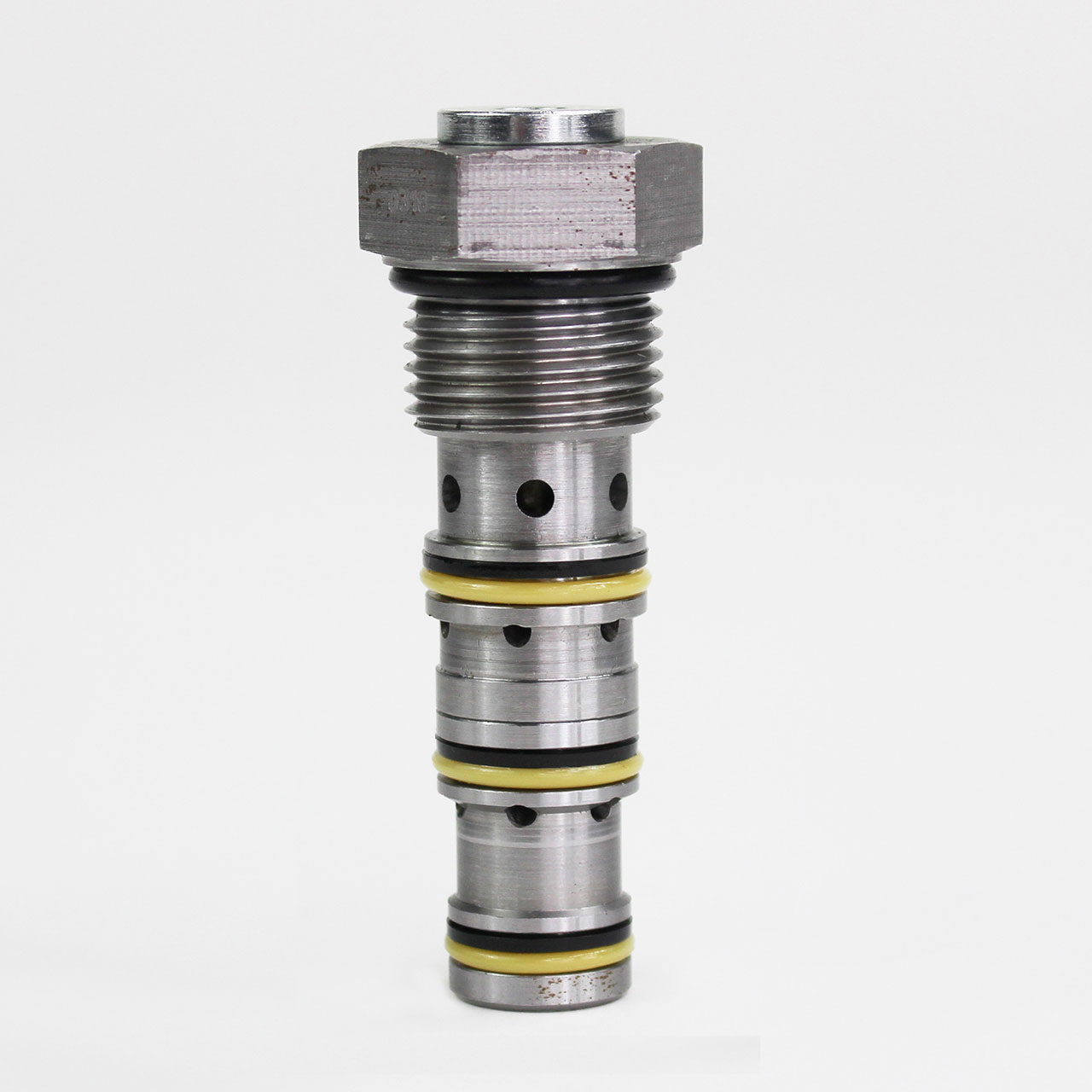

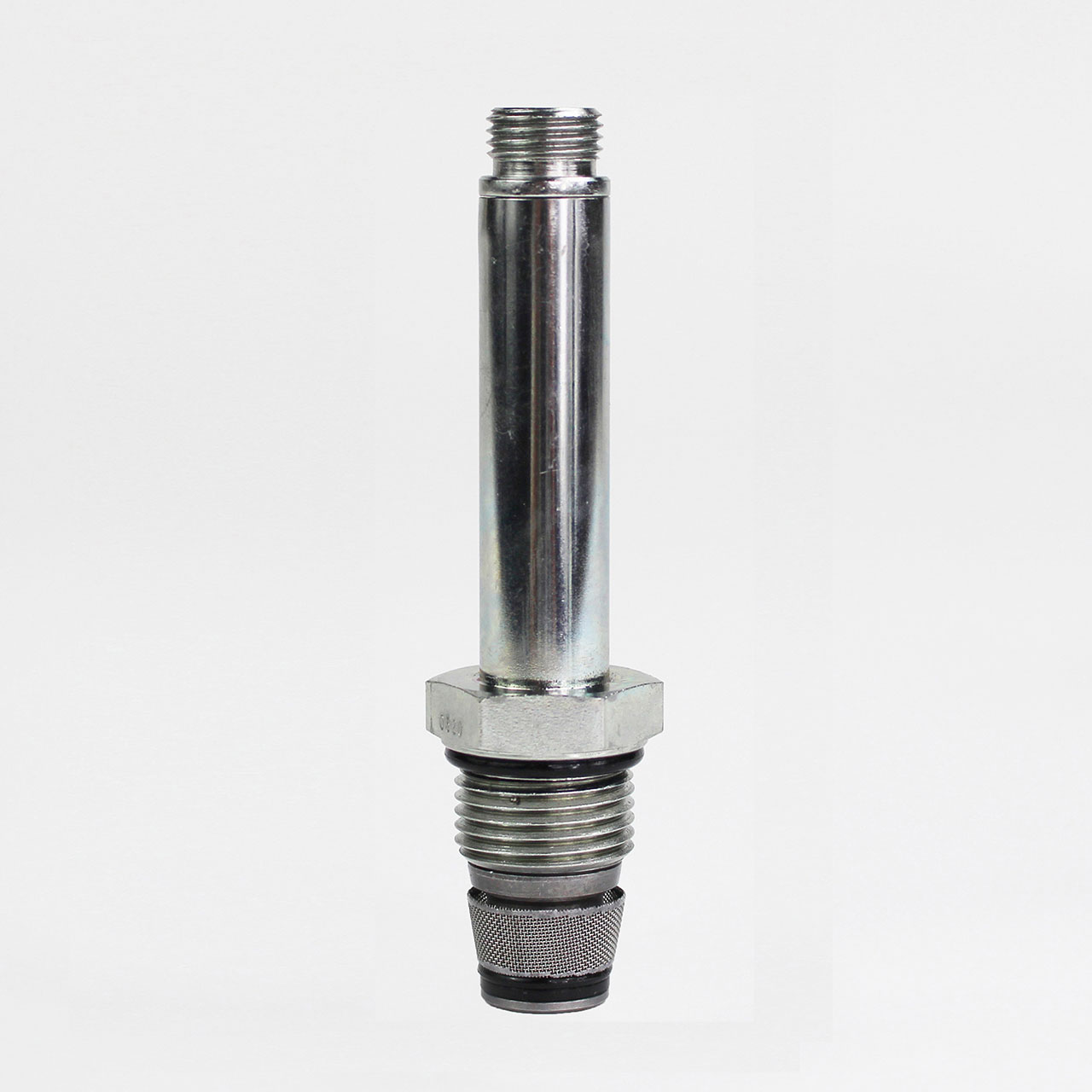

Deltrol’s Cartridge Valves can be purchased to install into an industry-common cavity or can be purchased in a ported block for use out of the box. Deltrol’s Cartridge Valves provide hydraulic functional control for flows typically up to 10 gpm, or higher for certain valve functions and applications. Size 8 and size 10 solenoid operated valves offer a wide range of valve functionalities from 2-way, 2-position to 4-way, 3-position. In addition, all proportional designs utilize coils developed and manufactured right at Deltrol. Cartridge Valves are also used for motion control, flow control and pressure control, giving a hydraulic circuit functionality.

Zero Profile

Reduce total system weight and shrink total overall envelope dimensions by utilizing Deltrol’s zero profile valve line. Deltrol’s zero profile valves provides options for a more efficient fully assembled, integrated hydraulic circuit manifold. Zero profile valves mount below the manifold surface for valve placement optimization to minimize total overall envelope dimensions. Zero profile valves can be mounted on block sides that have little or no clearance for better utilization of all surfaces. Zero profile valves can also be mounted directly under a traditional cartridge valve, providing a unique and effective way to configure integrated circuit manifolds to support different block sizes and configurations.

Zero Profile Valves are part of the Cartridge Valves Product line. All Zero Profile Valves have Model Codes starting with a "Z".
